Technology – 3D Printing Systems

Our construction platforms are engineered to support both high-volume urban deployment and decentralized rapid-response construction. GAUDI Tech currently operates two primary system types, each tailored to specific project needs and environments.

All GAUDI Tech systems support both remote and manual operation modes, offer automated pump control, and include on-site ink mixing stations to ensure adaptability and efficiency in diverse construction scenarios.

1. Gantry Printer (2.0)

This large-format system features a printing volume of 18.5m x 8.5m x 3.0m. Key components include:

  • Precision-controlled extrusion system
  • Layer thickness control ranging from 5–25mm
  • Printing speed of 8 to 10 meters per minute

The gantry design enables the printing of full-scale villas, public infrastructure, and multi-unit buildings with reduced reliance on scaffolding or mold systems.

GAUDI Ink
GAUDI Ink

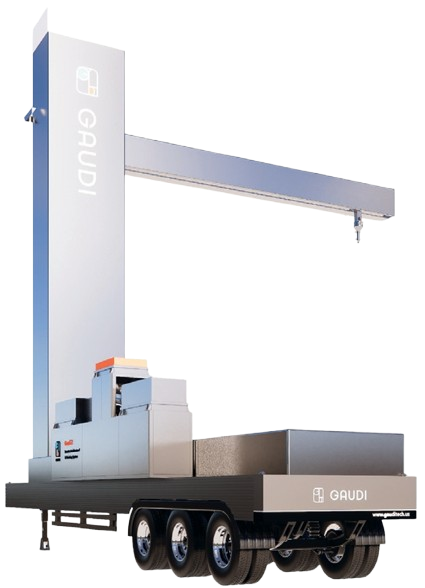

2. Mobile Folding Printer (3.0)

This compact and transportable system is engineered for on-demand setup and remote deployments. It folds down for easy relocation and can print structures up to 10.3m wide. Notable features include:

  • 100L ink silo
  • Integrated ink delivery system with variable-speed flow
  • Rapid setup ideal for post-disaster relief and modular installations

Construction Materials – Circular Innovation

GAUDI&'s "ink" is a construction-grade, printable composite created from industrial waste including steel slag, fly ash, tailings, desert sand, and demolition debris. The formula is optimized for structural integrity, environmental safety, and compatibility with diverse geotechnical environments.

Compressive Strength
Compressive Strength Icon
up to 53.3 MPa (exceeds standard concrete)
Axial Strength
Axial Strength Icon
up to 44.1 MPa
Flexural Strength
Flexural Strength Icon
6.5 MPa
Shrinkage
Shrinkage Icon
≤600 με after 28 days
Thermal Conductivity
Thermal Conductivity Icon
1.52 W/(m²·K)
Freeze Resistance
Freeze-Thaw Resistance Icon
<1% material degradation (D50 standard)
Radiation Indices
Radiation Indices Icon
fully compliant with GB6566 international standards

Use Cases & Sector Applications

GAUDI’s technology supports a wide variety of applications across private and public sectors. It enables the creation of structures that are resilient, adaptable, and aesthetically customizable.

Residential Construction

  • High-performance villas, duplexes, and single-family homes
  • Multi-unit low-rise housing with integrated energy efficiency

Commercial and Mixed Use

  • Customized office buildings and business centers
  • Media hubs, event pavilions, and retail environments

Infrastructure and Civil Engineering

  • Riverbanks, revetments, sound barriers, and bridges
  • Modular drainage channels, retaining walls, and slope stabilization structures

Public Amenities and Urban Furniture

  • Bus shelters, smart toilets, and community kiosks
  • Visitor centers, public libraries, and exhibition pavilions

Emergency and Humanitarian Housing

  • Tiny homes, pop-up shelters, and modular housing units
  • Ideal for post-disaster recovery zones and refugee infrastructure

In all scenarios, GAUDI reduces the build time by more than 50%, cuts material waste, and improves structural consistency.
